Manual Spray Guns
Airless and air-assisted manual spray guns from 250 to 500 BAR. Click any model for full specifications.
500 BAR500 BAR maximum pressure. 304 SS body, Tungsten Carbide valve. 7/8" UNF tip. For heavy-duty structural, offshore, and bridge coatings.
450 BAR450 BAR (SS) / 350 BAR (AL). Tungsten Carbide seat. 7/8" UNF. For solventless epoxy and marine protective coatings.

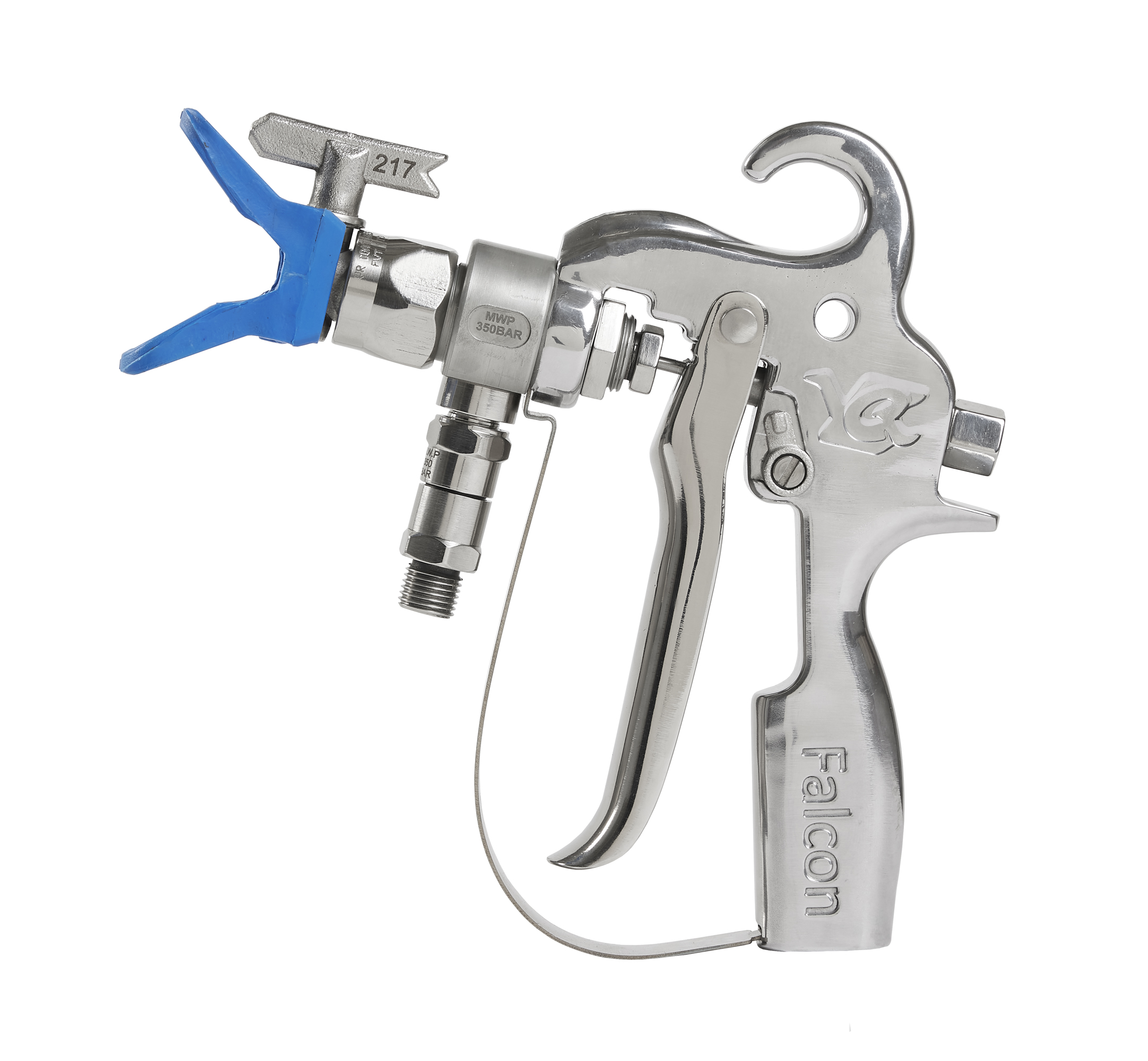

350 BAR350 BAR, 304 SS body, Tungsten Carbide Valve. M18×1 tip. For industrial structural and protective coating applications.

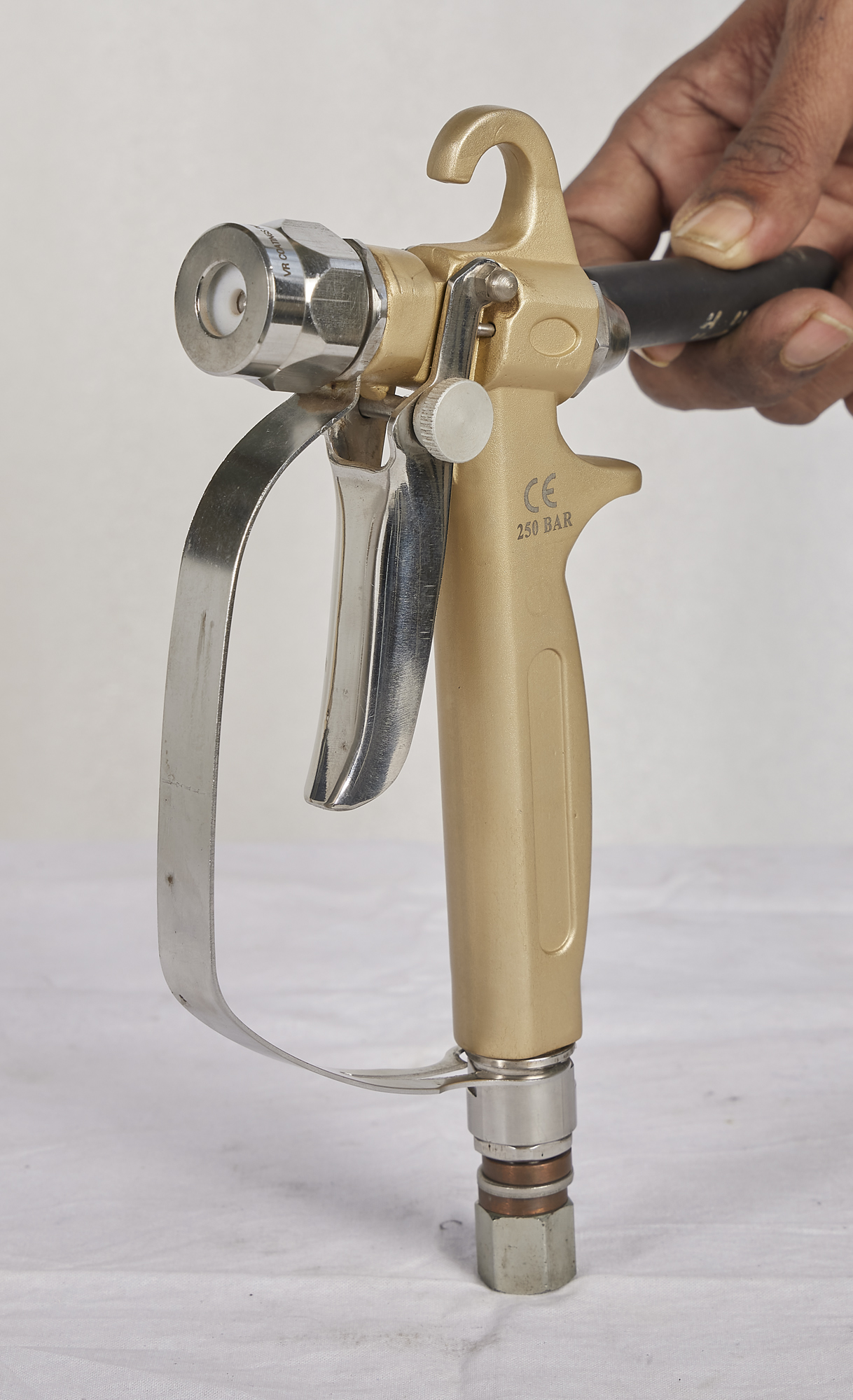

250 BAR250 BAR, lightweight aluminium body, Tungsten Carbide seat. M18×1 tip. The go-to gun for primers, finish coats, and general airless.

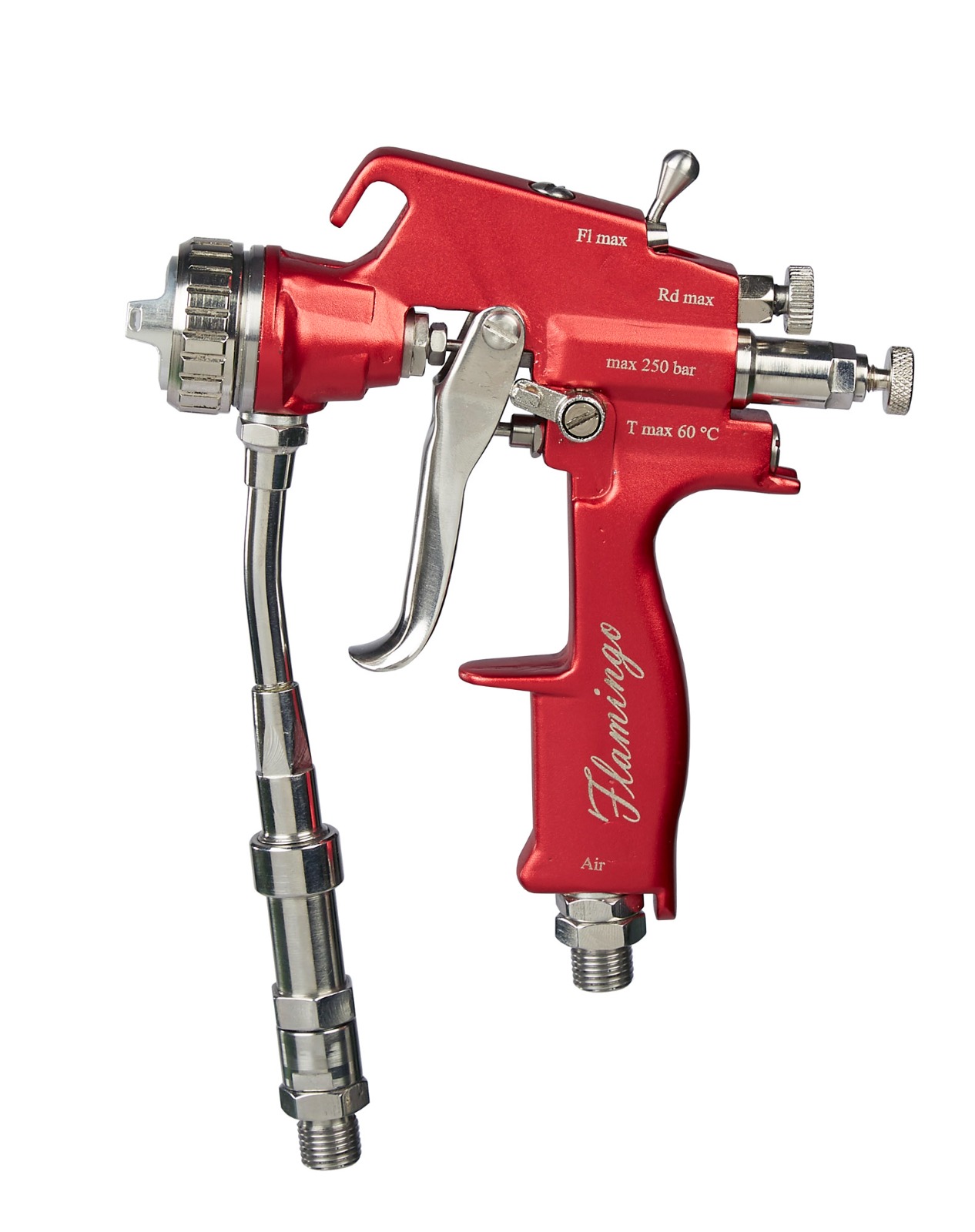

Air-Assisted250 BAR air-assisted airless for wood finishing, lacquers, furniture, and fine coatings. Used with MINI TIGER pump.
.jpg)

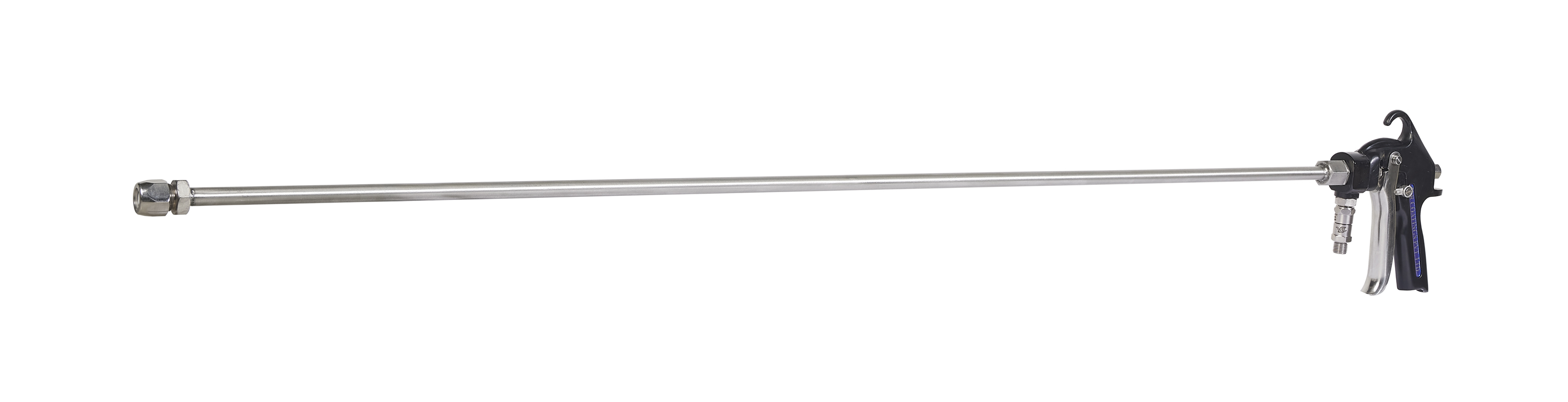

1m Pole1-metre standard length, other lengths on request. Up to 2345 BAR. For painting at height and internal pipe coating.

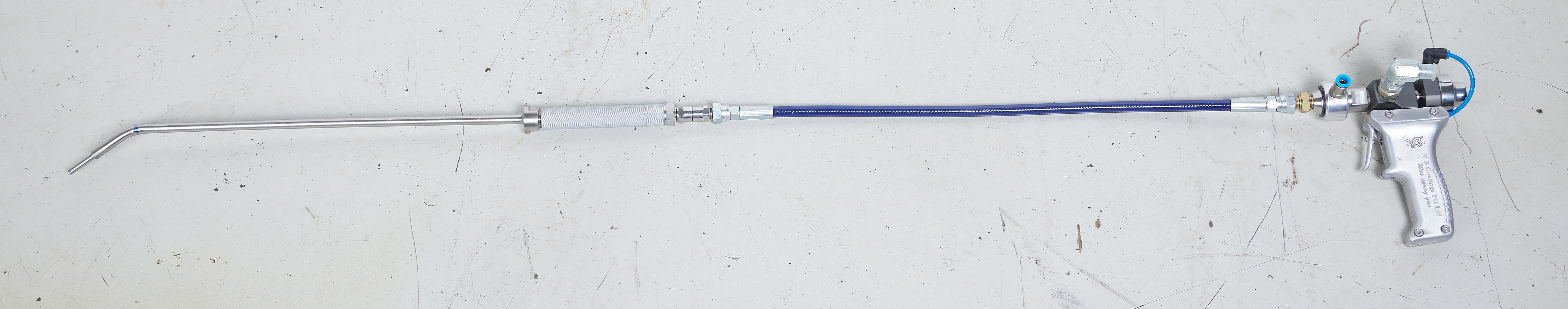

Wax350 BAR, extended nozzle tube for cavity waxing and underbody protection in automotive applications.

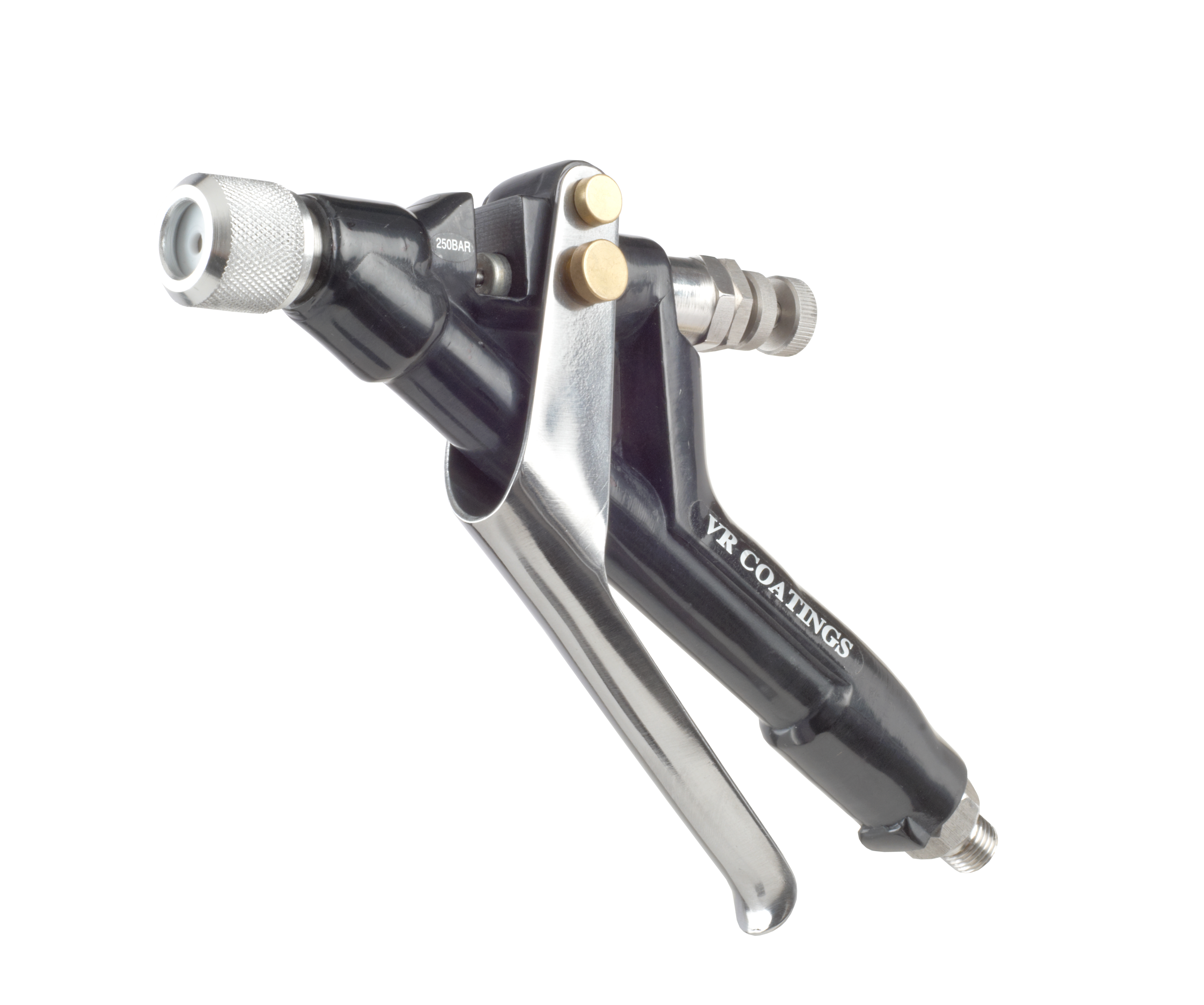

450 BAR450 BAR, 3/8" BSP inlet, M18×1.5 tip. 304 SS body for high-viscosity extrusion and dispensing applications.
.jpg)

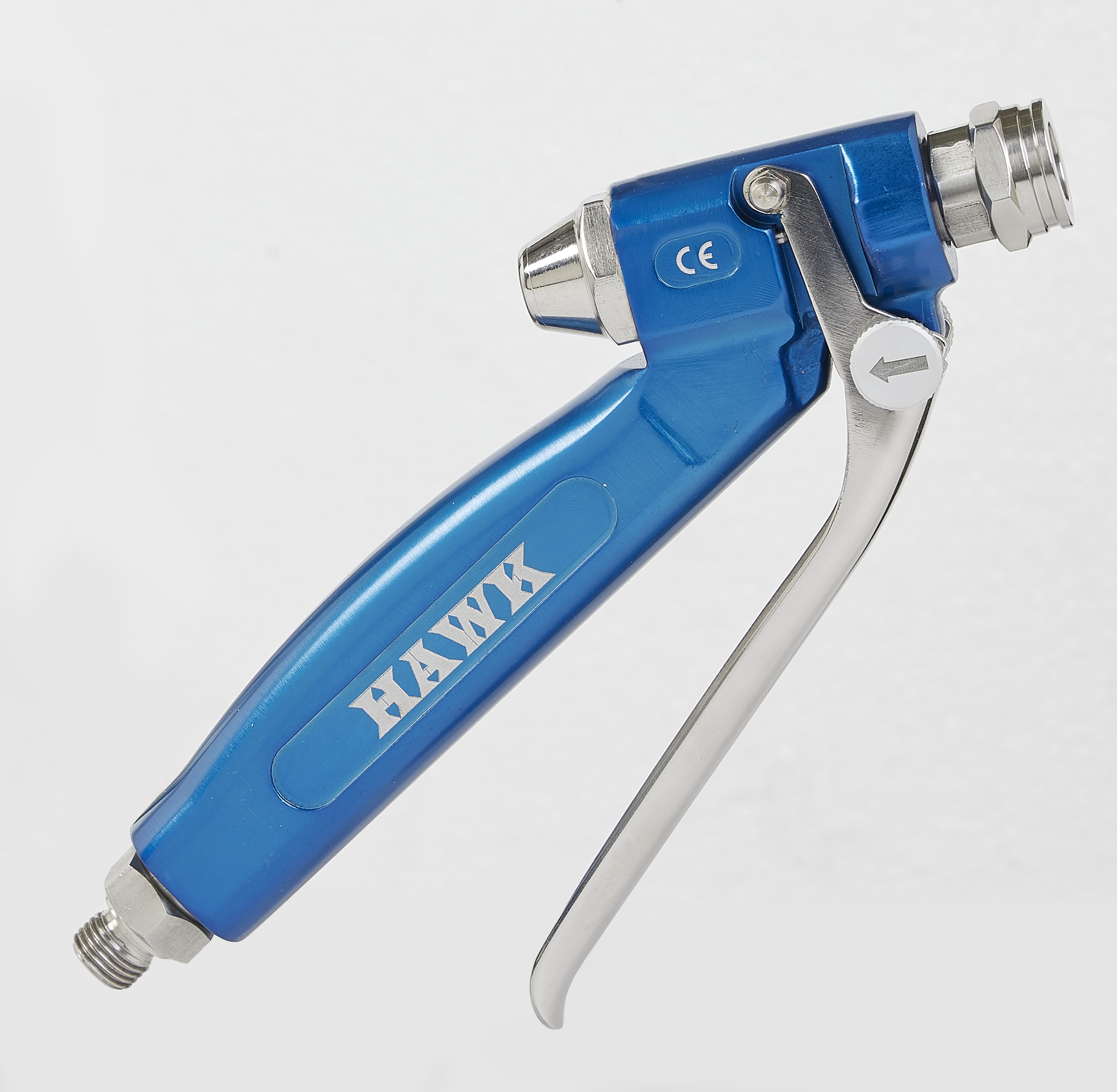

350 BAR350 BAR dispensing gun, 3/8" BSP inlet, M18×1.5 tip. For precise sealant and adhesive dispensing.
Automatic Spray Guns
Automatic airless and dispensing guns for reciprocators, robotic systems, and automated painting lines. All spring-return for safe auto-close.
450 BAR450 BAR stainless steel automatic gun. Spring-return, min 4 bar switching. For reciprocators, robotic painting, and automated coating lines.
250 BAR250 BAR aluminium automatic airless gun. Spring-return, min 4 bar switching. Lighter option for automated painting systems.
400 BAR400 BAR compact block-style aluminium gun. Min 2 bar switching — works with low plant air. 11/16" UNF tip. For automated machines.
.jpg)
350 BAR350 BAR SS automatic dispensing gun. Spring-return, min 4 bar switching. For robotic sealant and adhesive dispensing.
200 BAR200 BAR aluminium automatic dispensing gun for lighter automated dispensing applications. M18×1.5 tip.
KINGFISHER Conventional Air Spray Guns
Four variants covering gravity cup and pressure feed configurations. 4 BAR air pressure. Made in India. CE & ATEX certified.

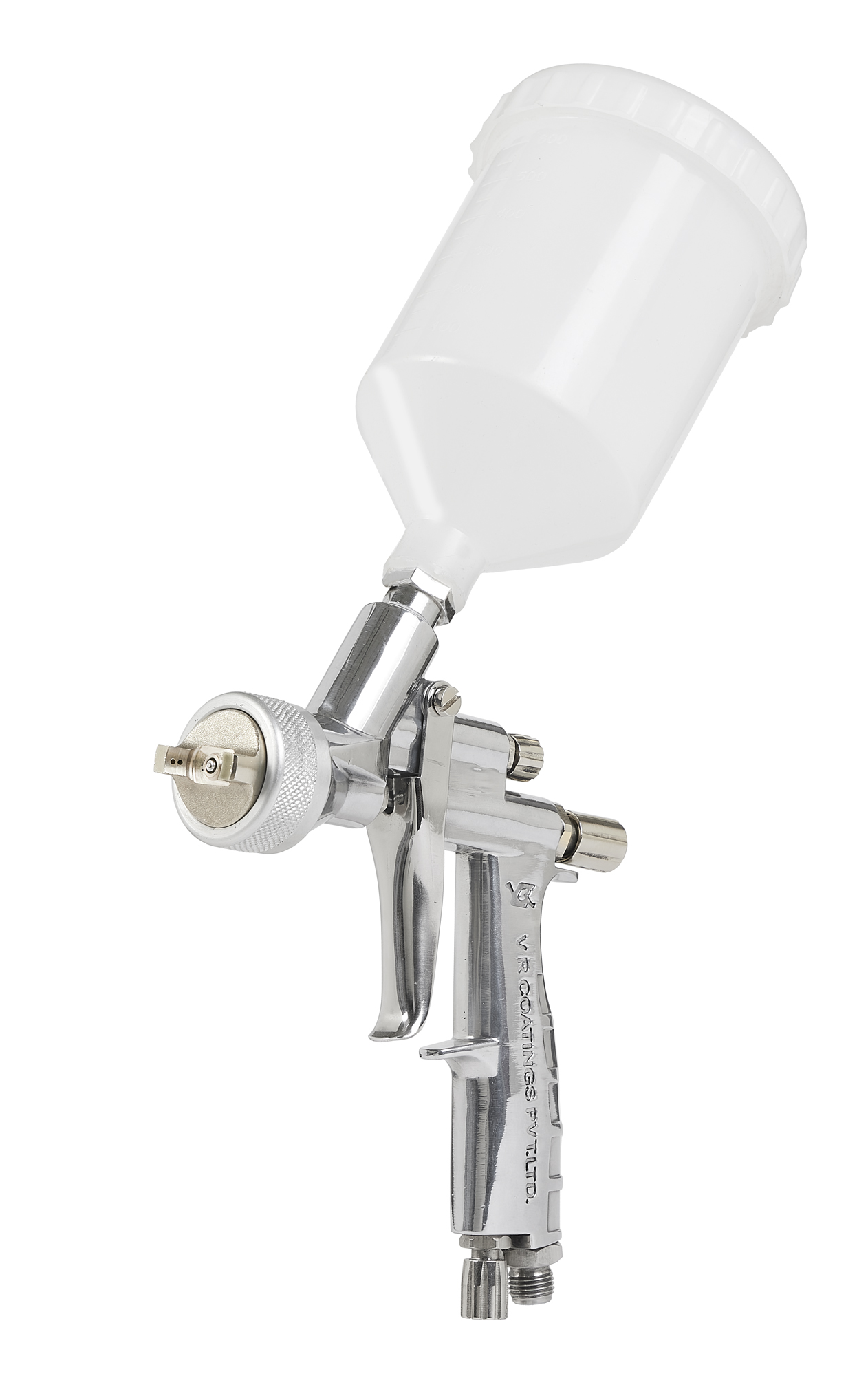

Silver4 BAR air spray, 350mm fan pattern. Gravity cup ¼" BSP (600ml). Aluminium pressure die cast body.
.png)

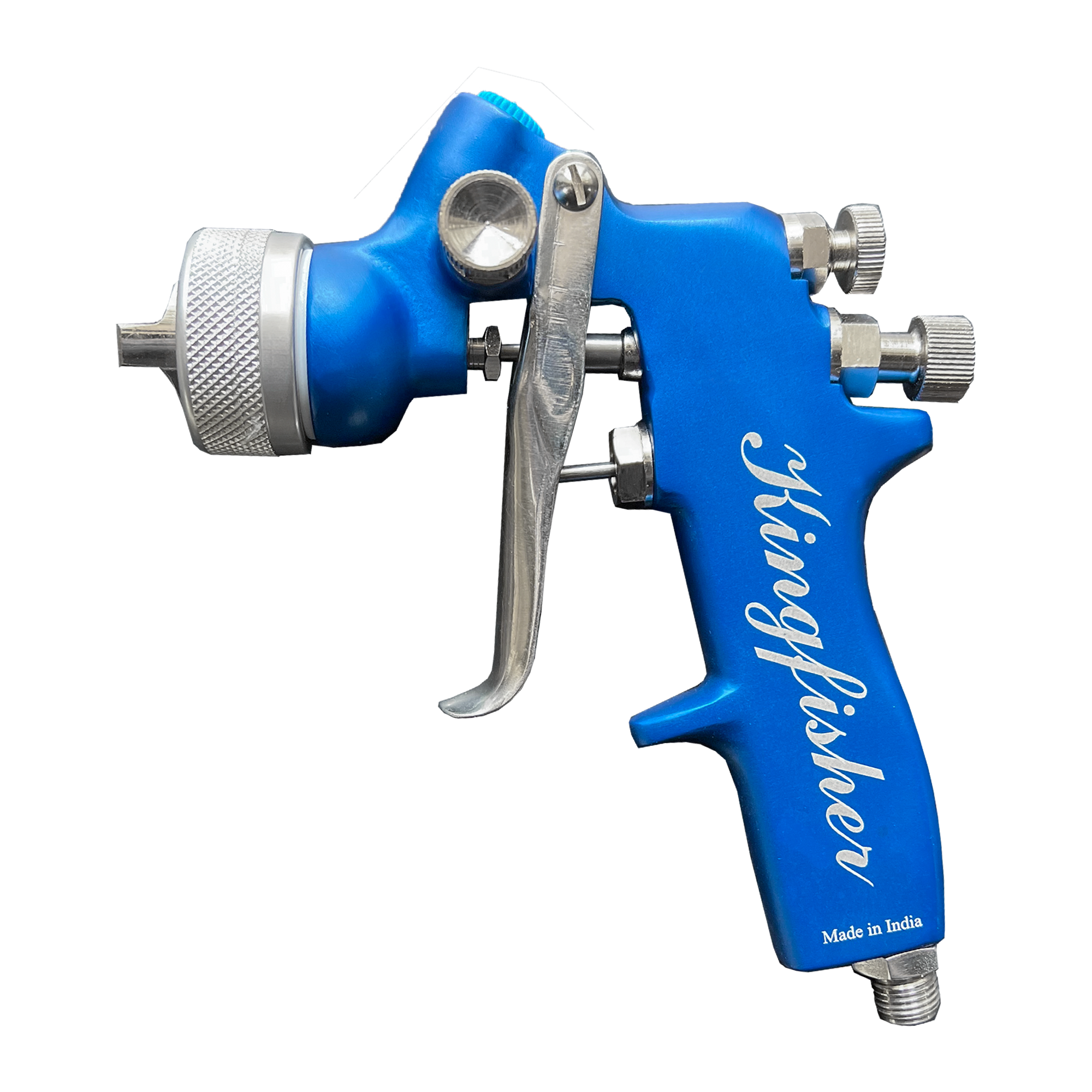

Blue4 BAR air spray, 50–250mm fan pattern. Gravity cup ¼" BSP (600ml). Light aluminium forged body.

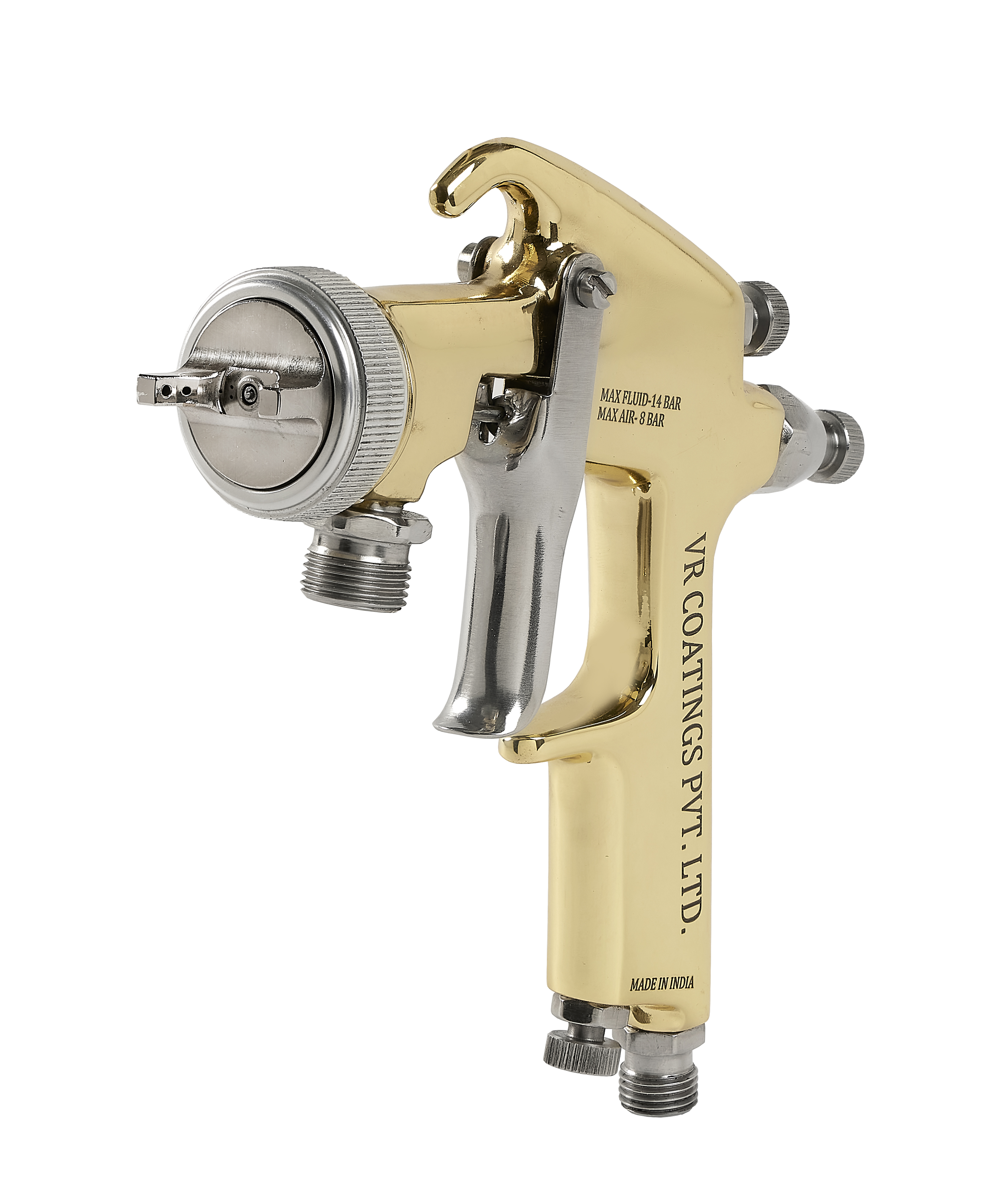

Gold4 BAR air spray, 50–250mm fan. Pressure Feed Pot 3/8" BSP. Forged aluminium anodized body.
.png)

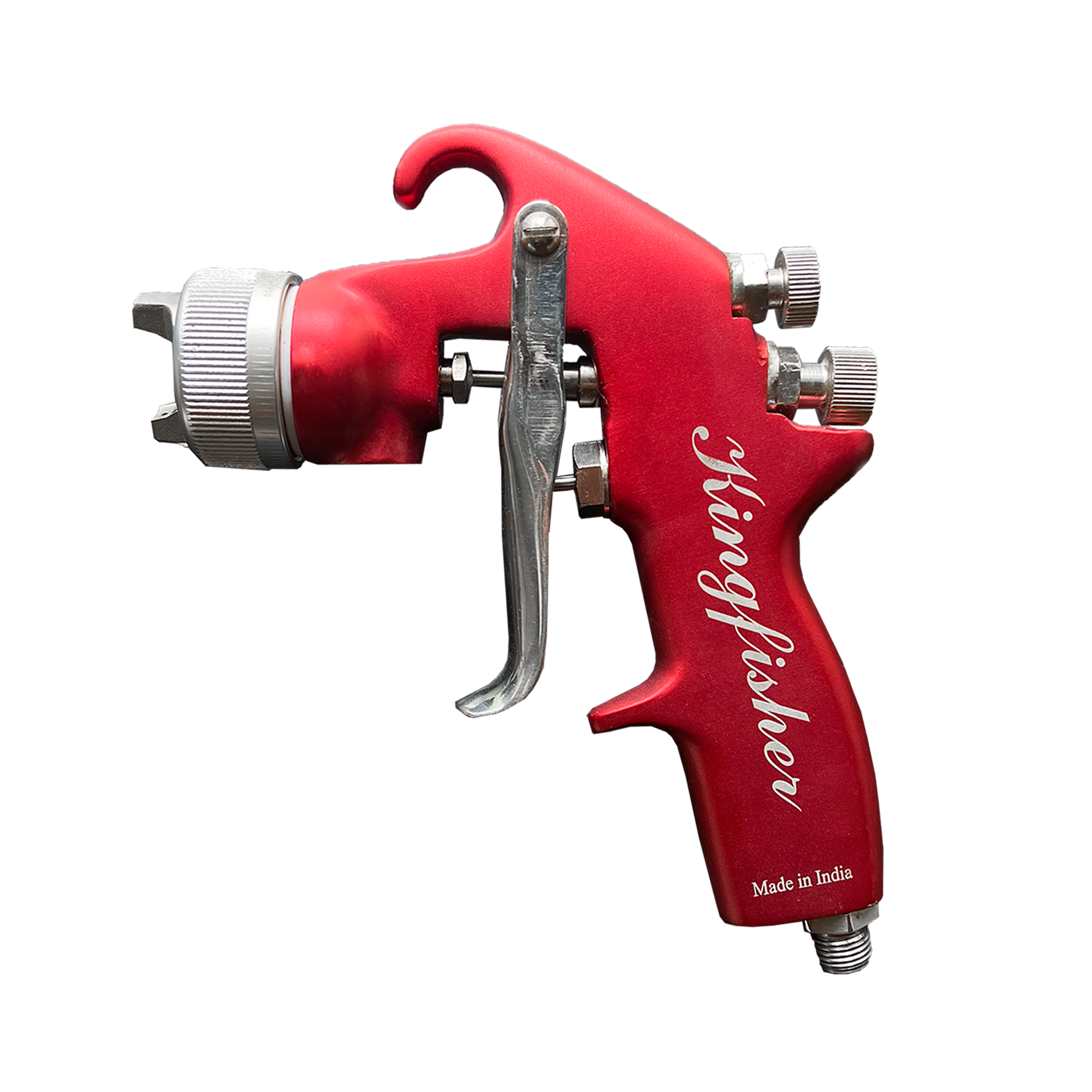

Red4 BAR air spray, 50–250mm fan. Pressure Feed Pot 3/8" BSP. Light aluminium forged body.
Ball Valves
High pressure manual ball valves for paint and coating transfer lines, hydraulic and pneumatic systems.
500 BARHigh pressure 2-way and 3-way manual ball valves. SS316L up to 450 BAR, Carbon Steel up to 500 BAR. Sizes 1/4" to 1-1/4". BSP/NPT. PTFE/POM seals. -20°C to +180°C.
Pressure Regulators
HP & LP pressure regulators, back pressure regulators and multi-plate regulators for all spray and circulation systems.
350 BAR350 BAR max inbound, 30–290 BAR output, 6 lpm. Tungsten Carbide seat. Manual and pneumatically operated. 3/8" BSP ports.
18 BAR18 BAR max inbound, 3–7 BAR output, 8 lpm. 304 SS, Aluminium, Tungsten Carbide valve, PTFE.
Back PressureHP: 350 BAR max, 30–290 BAR. LP: 7 BAR max. For paint circulation systems. Manual & pneumatic.
400 BAR400 BAR max inlet, 16–320 BAR output. Available in 2 and 4 plate configurations. 304 SS, Tungsten Carbide valve. 3/4" BSP.
Inline Filters
High and low pressure inline filters, filter cassettes, cartridge filters, bag filters, and tip filter assemblies.

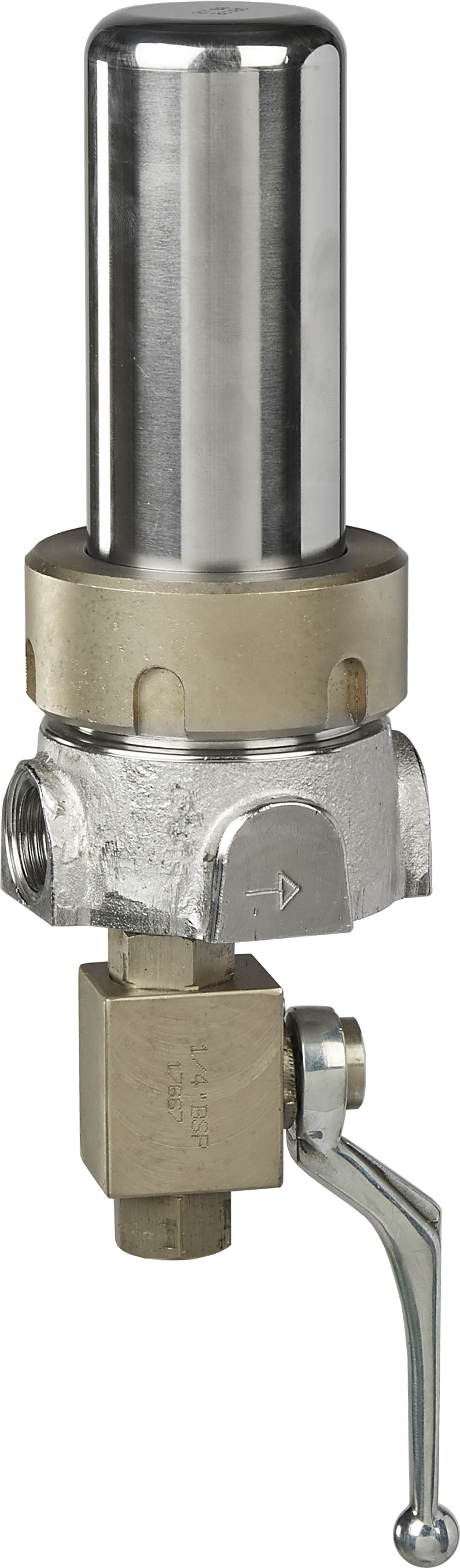

450 BAR450 BAR model: Ø27×145mm cassette, SS & PTFE. 350 BAR model: Ø27×114mm.

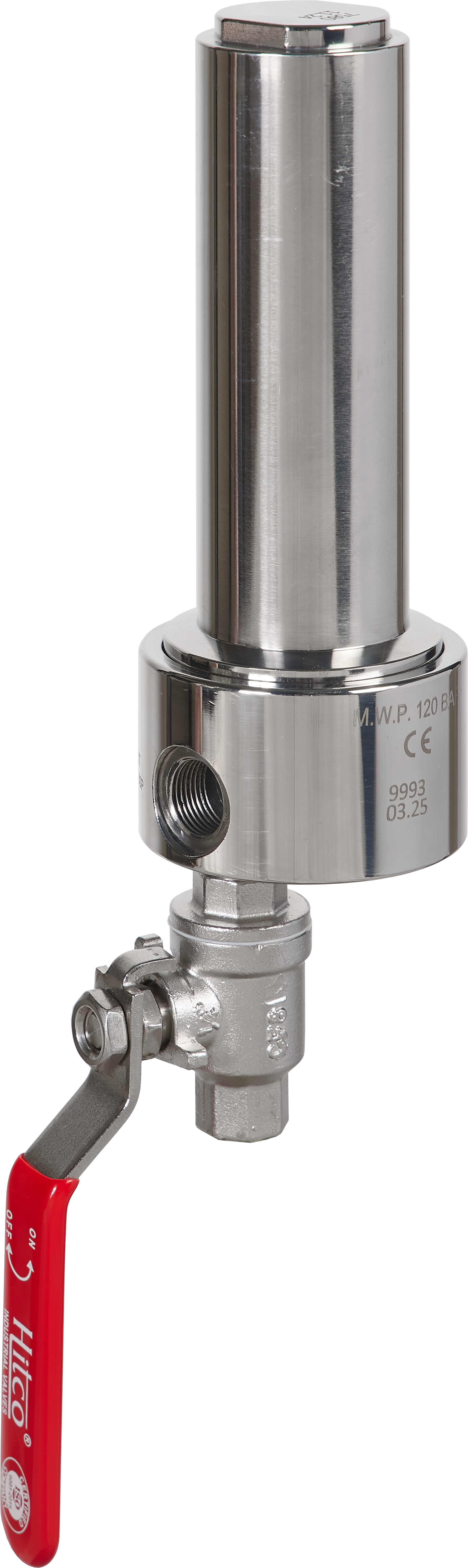

120 BARSS: 120 BAR. Aluminium: 24 BAR. 3/8" BSP ports. For low-pressure circulation and transfer systems.
CassetteØ27×L145mm replacement cassettes. 83cc volume. 10 mesh sizes: 60–600. 304 SS.
Tip FilterMounts at gun tip. M18×1 and 7/8" connections. Mesh 30, 60, 100. 304 SS.

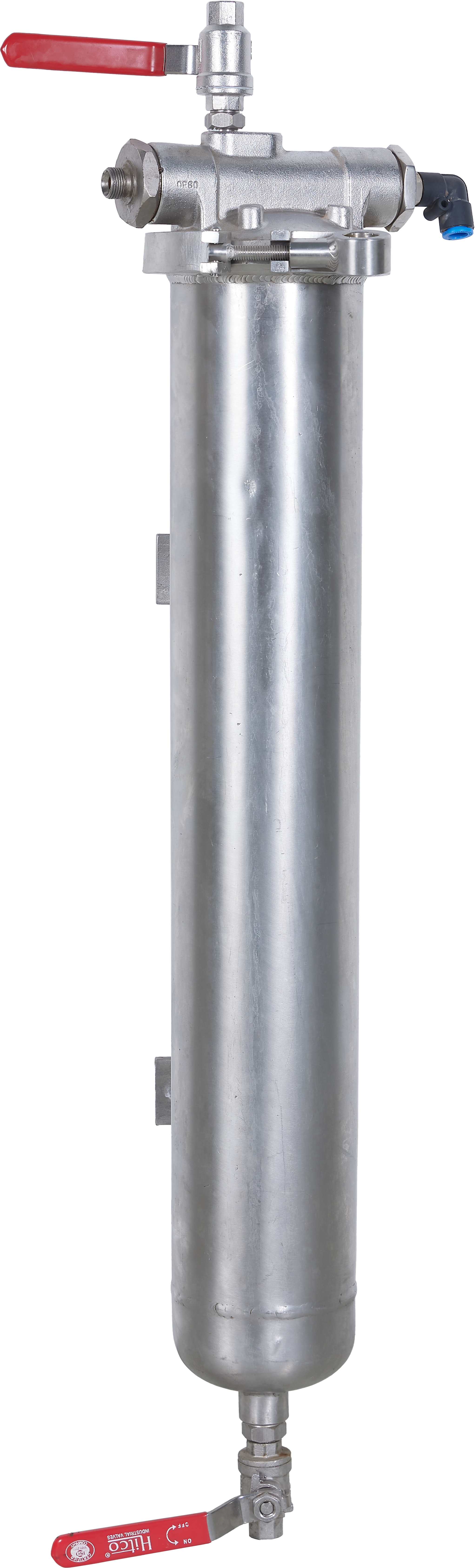

28 BAR28 BAR, 2½" × 20" cartridge. 1" BSP(F) ports. 304 SS & PTFE.

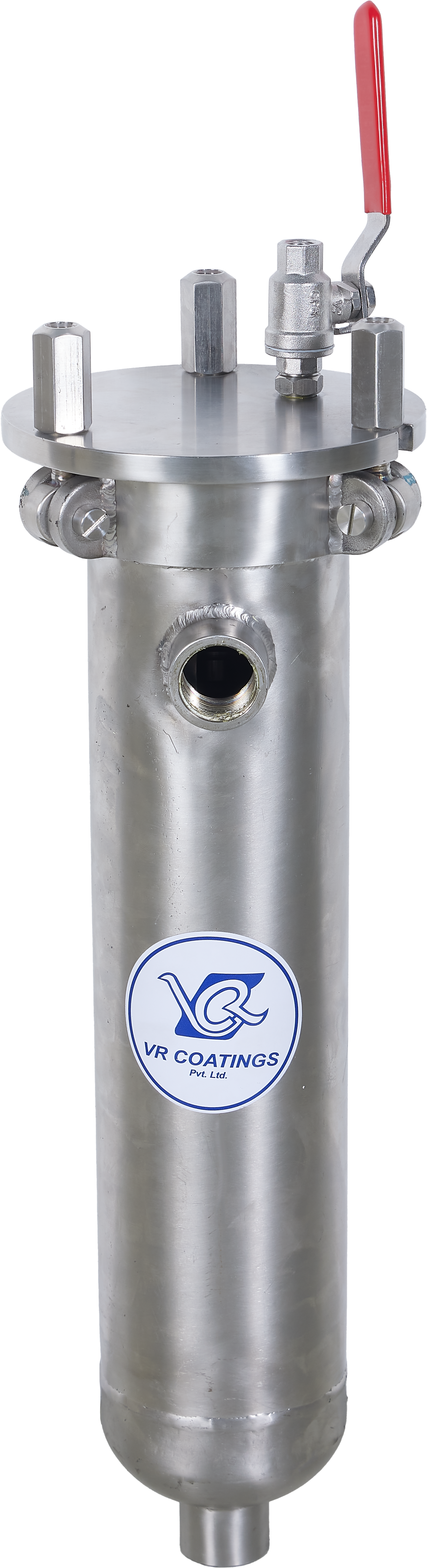

30 BAR30 BAR, 4" OD × 9" or 13" bags. For over-spray recycling systems and large-volume low-pressure filtration.
Agitation & Mixing
Turbine stirrers and pneumatic stirrers to keep paints and coatings in suspension.
TB-70/110/180TB-70, TB-110, TB-180 blade sizes for 20–200L pails. Flameproof/EX-certified electric or pneumatic motors. IP55 rated.
PneumaticVane type and axial piston type pneumatic motors. For 45–60L, 100L, and 200L containers. SS shaft & fan.
Pressure Pots & Dampners
Stainless steel pressure feed pots and pulsation dampners for smooth, consistent paint delivery.
2.5–40L4 BAR max, 5 capacity options (2.5, 5, 10, 20, 40L). PTFE gasket, safety valve, nylon bend outlet.
21 BAREliminates pump pulsation. 1¼" (57 lpm) and 2" (76 lpm). 21 BAR max. 304 SS & PTFE. Gas-charged.
Stainless Steel Tanks
Stainless steel tanks for paint storage, agitation and feed — 20L, 60L and 200L capacities.
20 Litre20L SS tank for paint storage and feed. PTFE gasket, lid with clamp.
60 Litre60L SS tank for medium production lines. Compatible with turbine and pneumatic stirrers. Safety valve.
200 Litre200L heavy-duty SS tank. Compatible with TB-180 stirrer. Safety valve, forklift pockets available.
Heaters
Electric inline heaters for paint and coating materials — optimal temperature for consistent spray quality and viscosity control.
ElectricElectric inline heater for heating paint and coating materials. Better atomisation, consistent viscosity and superior finish quality.
HoseElectrically heated hose for 2-component hot airless spray systems. For CHEETAH and POLYUREA systems.
Swivels
High pressure swivel joints for airless spray hose connections — prevents hose twisting and tangling.
HPHP swivel joint. Prevents hose twisting. M22, 3/8" BSP and other sizes. 304 SS body.
LPLP swivel for air supply and paint transfer hose connections. Aluminium body, PTFE seals.
Drum Press
Pneumatic drum unloaders for 5L to 200L containers. Complete material extraction with follow plate. CE & ATEX certified.
5L–200L
5L to 200L pneumatic drum presses with follow plate. Available with 5" & 8" ram. Multiple seal options: NBR, Viton, EPDM, Silicon, PU.
