HIPPO

Low Pressure Paint Transfer Pump — Piston & Diaphragm Type

The HIPPO range is suitable for transferring paint materials, explosive liquids, and can feed multiple spray guns in paint circulation systems. Available in piston type for pressures up to 72 BAR, and double diaphragm type for water-based and chemical fluids requiring pulsation-free transfer and energy-efficient operation.

Request Quote Download Datasheet

CE Certified ATEX Ex ISO · TUV Made in India 🇮🇳

Technical Specifications

Piston Type Models	1:170 \| 3:400 \| 3:900 \| 5:900 \| 12:400
Pressure Ratio	1:1 \| 3:1 \| 3:1 \| 5:1 \| 12:1
Discharge per Cycle (cc)	170 \| 400 \| 900 \| 900 \| 400
Stroke Length (mm)	120
Max Inlet Air Pressure (bar)	6 (all models)
Max Output Pressure @ 6 bar (bar)	6 \| 18 \| 18 \| 30 \| 72
Diaphragm Type — Pressure Ratio	1:1
Diaphragm — Max Output Pressure	6 bar
Diaphragm — Wetted Parts	304 Stainless Steel / PTFE / Silicon
Diaphragm — Max Fluid Temperature	T4 (135°C)
Diaphragm — Air Consumption	30 N-LPM
Certifications	CE · ATEX

Key Features

Pneumatically sensed high-performance air motor

High flow delivery

Stainless steel hydraulic body

Easy maintenance

Ice-free air motor technology

Lightweight & user-friendly

Compliant with EC norms

Diaphragm model: low air consumption, energy-efficient

Pulsation-free transfer for smooth finish quality

Suitable for water-based and chemical fluids (diaphragm type)

Applications & Industries

The HIPPO is widely used across the following industries:

Paint Transfer & Circulation

Chemical Fluid Transfer

Automobile Paint Application

Industrial Fluid Handling

Product Videos

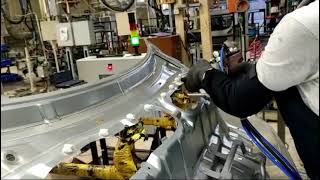

VRC Dispensing Systems

Frequently Asked Questions

Common questions about the HIPPO

What is the difference between HIPPO piston and diaphragm types?

The piston type (up to 72 BAR) is for higher pressure paint and solvent transfer. The diaphragm type (6 BAR max) is for pulsation-free transfer of water-based paints, chemicals, and fluids sensitive to shear.
