BARREL PUMP

Barrel Length Pump — For Transferring Liquids from 210 Litre Barrels

The VR Coatings Barrel Pump is suitable for transferring and spraying lubricating, rust-proof, and undercoating fluids (oil, grease, wax, glue, etc.) directly from 210-litre barrels. Double-acting pulsation-free output. Specially designed models available for handling Polyol and Isocyanate safely.

Request Quote Download Datasheet

CE Certified ATEX Ex ISO · TUV Made in India 🇮🇳

Technical Specifications

Pressure Ratio	4:1 \| 6:1 \| 12:1 \| 60:1
Discharge per Cycle (cc)	230 (all models)
Air Motor Piston Ø (mm)	80 \| 100 \| 125 \| 160
Stroke Length (mm)	120 (all models)
Max Inlet Air Pressure (bar)	6 (all models)
Max Output Pressure @ 6 bar (bar)	24 \| 36 \| 72 \| 360
Air Consumption N-LPM @ 15 cycles	127 \| 96 \| 309 \| 506
Certifications	CE · ATEX

Key Features

Pneumatically sensed high-performance air motor

Double-acting pulsation-free output

Stainless steel rust-proof hydraulic body

Easy maintenance

Ice-free air motor technology

Light & easy to handle

Specially designed Polyol & Isocyanate models

4 pressure ratio options from 4:1 to 60:1

Applications & Industries

The BARREL PUMP is widely used across the following industries:

Oil & Grease Transfer

Underbody Wax

Adhesive Dispensing

Polyol & Isocyanate

Product Videos

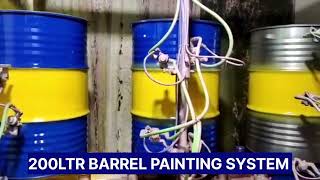

200 Litre Barrel Painting System

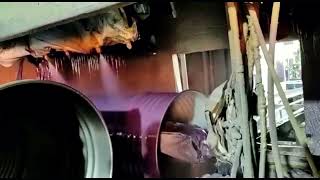

Barrel Painting System

200L Drum Press Grease Dispensing

Frequently Asked Questions

Common questions about the BARREL PUMP

Can the Barrel Pump handle Polyol and Isocyanate?

Yes. VR Coatings offers specially designed barrel pump models for Polyol and Isocyanate with compatible seals and wetted parts.

What barrel sizes does this pump fit?

Standard 210-litre (200L) industrial drums. Custom follower plate sizes for non-standard barrels available on request.
