Electronic 2K VRC-MIX HP Advanced Variable Ratio Electronic Two Component Airless Spray Equipment

Electronic Variable Ratio 2K System

VRC-MIX HP

Advanced Variable Ratio Electronic Two Component Airless Spray Painting Equipment

The VRC-MIX HP is an advanced variable ratio electronic two-component airless spray system suitable for all types of two-component paints with moderate pot life. Accurate component metering by pump and precision metering valves. Online mixing ratio assurance, comprehensive fault generation and auto shutoff. Portable on wheel cart.

Request Quote 📄 Download Datasheet

CE Certified ATEX Ex ISO · TUV Made in India 🇮🇳

Technical Specifications

Mix Ratio Range	Up to 10.0:1 (in 0.1 increment)
Application	Airless / Air Assisted Airless
Maximum Flow Rate	6.8 litres per minute (higher flow optional)
Maximum Fluid Pressure	450 bar
Air Pressure Requirement	4–7 bar
Electrical Power Requirement	240V AC 50Hz Single Phase
Material Usage Reporting	Accumulative + daily consumption
Pot Life Monitoring	Online system health checking by pressure monitoring
Operator Interface	Hardware key (Standard) / Touch screen (Optional)
Communication	RS 232 for printer/network/PC, Modbus protocol (Optional)
SCADA	Optional
Certifications	CE · ATEX

Key Features

Accurate component metering by pump & precision metering valves

Online mixing ratio assurance — real-time verification

Remote mixing manifold — closer to gun for minimum mixed material

Field-proven, high-performance pumps — easy to maintain

Simple & easy to use with user-friendly operator interface

Portable — mounted on wheel cart with solvent pump

Comprehensive fault generation and auto shutoff

Online container level monitoring (optional)

Ex-proof remote operator panel (optional)

Applications & Industries

The VRC-MIX HP is widely used across the following industries:

Structural Steel Coating

2K Epoxy & PU Coatings

Marine Protective Coating

Oil & Gas Infrastructure

Product Videos

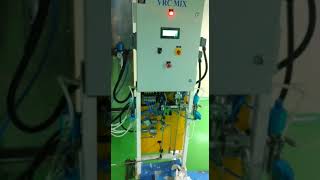

VRC MIX LP Spray Painting Application

Two Component Spray System

Frequently Asked Questions

Common questions about the VRC-MIX HP

What is the advantage of the VRC-MIX HP over a standard 2K system?

The VRC-MIX HP uses electronic flow metering for highly accurate ratio control (down to 0.1 increments), online ratio verification while spraying, and auto-shutoff on fault — unlike mechanical fixed-ratio systems.

Can the ratio be changed without stopping spraying?

Yes, the ratio can be adjusted in 0.1 increments during operation via the operator interface.
