TIGER

Low & Medium Duty Airless Spray Painting Equipment

The TIGER series is suitable for liquids of medium viscosities, all kinds of sprayable primers and finish paints, and paints of medium particle size. Ideal for structural painting, automobile spray, and greasing & lubrication applications.

Request Quote 📄 Download Datasheet

CE Certified ATEX Ex ISO · TUV Made in India 🇮🇳

Technical Specifications

Type	30:150 \| 35:70 \| 40:110 \| 45:150 \| 60:70 \| 60:110
Pressure Ratio	30:1 \| 35:1 \| 40:1 \| 45:1 \| 60:1 \| 60:1
Output per Cycle (cc)	150 \| 70 \| 110 \| 150 \| 70 \| 110
Air Motor Piston Ø (mm)	Ø160 \| Ø125 \| Ø160 \| Ø200 \| Ø160 \| Ø200
Stroke Length (mm)	120 (all models)
Max Output Pressure (bar)	180 \| 210 \| 240 \| 270 \| 360 \| 360
Certifications	CE · ATEX

Key Features

Pneumatically sensed double-spool stall-free air motor

High pressure with medium output discharge

Stainless steel rust-proof hydraulic body

Ice-free air motors

6 models covering wide range of outputs

Compliance to EC and ATEX norms

Applications & Industries

Medium Duty Structural Painting

Automobile Paint Spray

Greasing & Lubrication

General Industrial

Product Videos

Airless Air-Assisted Painting

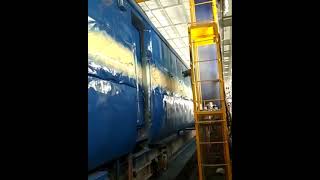

Railway Coach Painting

Frequently Asked Questions

Common questions about the TIGER

What paints can the TIGER spray?

The TIGER handles medium-viscosity solvent-borne and water-borne paints, primers, finish coats, and zinc-rich primers.

How many guns can one TIGER feed?

Typically 1–2 guns depending on flow rate. The TIGER range offers recommended spray volumes of 1.0–2.2 litres/min @ 15 cycles.

What is the difference between TIGER and MINI TIGER?

TIGER is for medium-viscosity airless spraying. MINI TIGER is specifically for air-assisted airless applications requiring fine finish.
