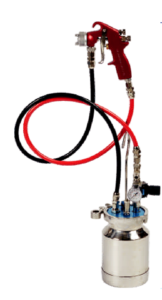

AIR ASSISTED MANUAL SPRAY GUN
This range is designed for tough working conditions and suitable for Automobiles, Furniture, Fabrication, Light Industry, Water Borne Applications and Paints like Enamels, Ceramics , Metallic, Medium Solids, Urethanes, Epoxies, Lacquer, Primers, UV painting.
Features -:
Same Gun works with gravity as well as Pressure Feed.
High quality design Air Cap for efficient spraying with perfect atomization.
Flexible ergonomics with swivelling cup for upside painting.
Sturdy design for tough environment.
Wide and uniform spraying pattern.
Easy to maintain, due to minimum parts.
| Type of Gun | Gravity Feed | Pressure Feed |
|---|---|---|
| Special Advantages | Same Gun works with gravity as well as Pressure Feed. | |
| Cap Capacity | 100 ml & 500 ml (SS / Plastic) | Pot capacity range – 2 ltr. to 50 ltr. |
| Nozzle Size in mm* | 0.8, 1, 1.2, 1.4 | |
| Pattern Width | 50 to 250 mm | |
| Body | Light Aluminum Forged | |
| Weight | 600 gms | |
| Air Inlet | 1/4 BSP | |
| Air Consumption in CFM | Range from 5 to 12 (depends on adjustment) | |
| Required Air Compressor | Maximum 6 Bar / Min 2 HP | |
| Suitable Paints | Enamels, Medium Solids, Urethanes, Epoxies, Lacquer, Primers, etc. | Enamels, Metallic, Medium Solids, Urethanes, Epoxies, Lacquer, Primers, UV painting etc. |
